SinusLeistungsSteller - electronic battery switch EBS

"Mainswitch and Fuse in one Device!"
Wear-free semiconductor switch with very fast electronic overcurrent shutdown.
Motivation
Datasheet

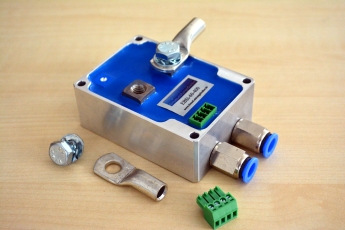

... e.g. EBSi-60-400-WK (basic version) ... mounting dimensions

 - max. 60V (14S LiPo), max. 400Adc (continous!)
 - settable, electronic fuse ca. 40..400Adc
 - reaction time at overcurrent ca. 10µs, typical
 - overload protected by temperature guard
 - galvanic insulated control input and error output
 - integrated  AVS (can be turned off for resistive loads)
 - robust M8-screw terminal blocks within load circuit
 - Industrial Version with water cooling ca. 320g, 82x59x30 mm

price/delivery time


... e.g. EBSi-60-240 (basic version) ... mounting dimensions

 - max. 60V (14S LiPo), max. 240Adc (continous!)
 - settable, electronic fuse ca. 25..240Adc
 - reaction time at overcurrent ca. 10µs, typical
 - overload protected by temperature guard
 - galvanic insulated control input and error output
 - integrated  AVS (can be turned off for resistive loads)
 - robust M8-screw terminal blocks within load circuit
 - Industrial Version ca. 270g, 82x59x24 mm

price/delivery time

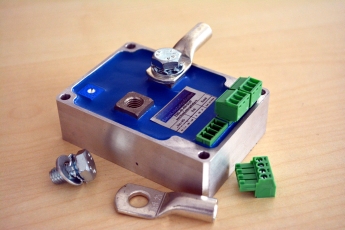

... e.g. EBS-60-240 (basic version) ... mounting dimensions

- max. 60V (14S LiPo), max. 240Adc (continous!)
- settable, electronic fuse ca. 25..240Adc
- reaction time at overcurrent ca. 10µs, typical
- overload protected by temperature guard
- galvanic insulated control input and error output
- integrated  AVS (can be turned off for resistive loads)
- robust M8-screw terminal blocks within load circuit
- completely potted, ca. 100g, 77x42x18 mm

price/delivery time



... e.g. EBS-60-240-SG/P ... mounting dimensions

as basic version, with :
- integrated  Sollwertgeber (SG)
- prepared for potentiometer 1kOhm...47kOhm




price/delivery time


... e.g. EBS-60-240-SG/3S ... mounting dimensions

as basic version, with:
- integrated  Sollwertgeber (SG)
- prepared for 3-level-switch (OFF-1-2-3)





price/delivery time

... further variants possible on request!
Please contact us, if you need larger quantities or a design-in for your application!
